Casing oscillators

The hydraulic casing oscillator is used to handle and extract steel pipes with a medium to large diameter, ranging from between 400 and 900 mm to a depth of 70 m. We can design casing oscillators with even bigger diameters upon request.

The casing oscillator guarantees superior performance and reliability, since it is made with choice materials and technical features that derive from decades of experience in the field.

We can design and manufacture casing oscillators with different dimensions at the customer’s request, in addition to our existing casing oscillator models – size 600 and our biggest model, size 900 mm.

morsa giracolonna

Casing oscillators 600

morsa giracolonna bassa supporto chiuso

low – support closed

giracolonna-alta-suporto

high – support open

morsa giracolonna supporto alto

motion

600 casing oscillator features

NOMINAL DIAMETER:
600 mm
NOMINAL DIAMETERS WITH REDUCERS:
500 mm, 400 mm
LIFTING HEIGHT:
330 mm
LIFTING FORCE:
65000 Kg
CLAMPING FORCE:
46500 Kg
ROTARY TORQUE:
28700 Kgm
WORKING PRESSURE:
260 bar
WEIGHT:
2000 Kg

Power systems

ELECTRIC SYSTEM

37kW electric motor – N ° 7 12 / 24V solenoid valves radiocontrol type scanreco RC400 – frequency 50 / 60Hz

Diesel system

55kW electric motor – N ° 7 12 / 24V solenoid valves radiocontrol type scanreco RC400 – frequency 50 / 60Hz.

Hydraulic drilling machine

The hydraulic drilling machine must guarantee a capacity of 60 / min. and a pressure of 260 bar.

morsa giracolonna

Call now! +39 0733 884015

Alternatively, write us for more information by clicking below.

CONTACT

Company (required) *

Name and Last Name (required)*

Country

Telephone (required)*

Your e-mail (required)*

  INFORMATIOS DETAILS
* (REQUIRED) By using this form you accept the storage and management of your data from this website.  PRIVACY POLICY

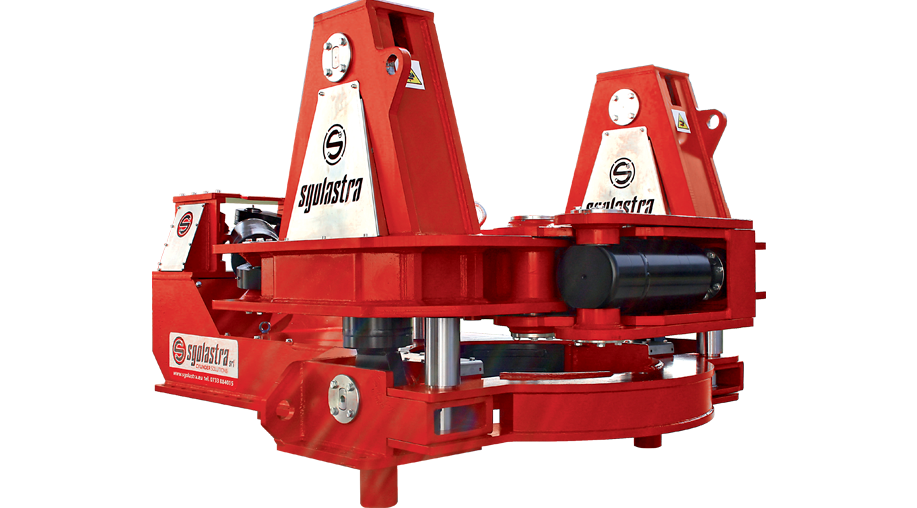

Casing oscillators 900

Low

Higth

Motion

900 casing oscillator features

NOMINAL DIAMETER:
900 mm
NOMINAL DIAMETERS WITH REDUCERS:
800 mm, 620 mm e 400 mm
LIFTING HEIGHT:
400 mm
LIFTING FORCE:
160000 kg
CLAMPING FORCE:
80000 Kg
ROTARY TORQUE:
140000 Kgm
WORKING PRESSURE:
260 bar
WEIGHT:
5400 Kg

We can offer the hydraulic system with a Diesel system for the 900 diameter casing oscillator as follows

    • Complete T65 cowling
    • Power unit with Kohler KDI 1903 TCR Diesel engine (42 kW)
    • 45cc piston pump
    • 150-litre oil tank
    • 12V air/oil heat exchanger
    • 8-section flow sharing distributor
    • hydraulic block with 16 external outlets (couplings not included)
    • special 16-function remote control for casing oscillator.

Tools help men in everyday jobs, and we make the casing oscillator to facilitate pile (casing) extraction in well construction and the like.
